OPI‐700 I/Oマップ・コネクタ配列表・入力回路

■I/O Map
A1 A0 D7 D6 D5 D4 D3 D2 D1 D0
1
1
0
0
1
0
1
0
PI32
PI24
PI16
PI8
PI31
PI23
PI15
PI7
PI30
PI22
PI14
PI6
PI29
PI21
PI13
PI5
PI28
PI20
PI12
PI4
PI27
PI19
PI11
PI3
PI26
PI18
PI10
PI2
PI25
PI17
PI9
PI1

■Connector J1
PIN# SIGNAL PIN# SIGNAL
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
PI1
PI3
PI5
PI7
PI1-8 ExV
-
PI9
PI11
PI13
PI15
PI9-16 ExV
-
PI17
PI19
PI21
PI23
PI17-24 ExV
-
PI25
PI27
PI29
PI31
PI25-32 ExV
-
-
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
PI2
PI4
PI6
PI8
PI1-8 ExV
-
PI10
PI12
PI14
PI16
PI9-16 ExV
-
PI18
PI20
PI22
PI24
PI17-24 ExV
-
PI26
PI28
PI30
PI32
PI25-32 ExV
-
-

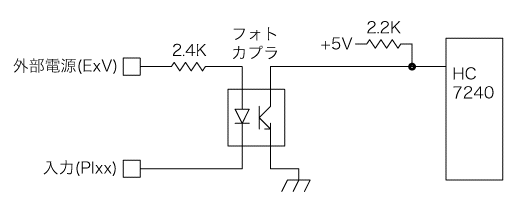

■Input Circuit
