OPO‐156T I/Oマップ・コネクタ配列表・出力回路

■I/O Map
A2 A1 A0 I/O Write I/O Read
1
1
1
1
1
1
0
0
1
0
1
0
Command to 71055 (J2)
Data to 71055 PC (J2)
Data to 71055 PB (J2)
Data to 71055 PA (J2)
(Illegal Condition)
-
-
-
0
0
0
0
1
1
0
0
1
0
1
0
Command to 71055 (J1)
Data to 71055 PC (J1)
Data to 71055 PB (J1)
Data to 71055 PA (J1)
(Illegal Condition)
-
-
-

■Connectors J1/J2
PIN# SIGNAL PIN# SIGNAL
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
PA0
PA2
PA4
PA6
PA-外部電源
PB0
PB2
PB4
PB6
PB-外部電源
PC0
PC2
PC4
PC6
PC-外部電源
-
-
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PA1
PA3
PA5
PA7
PA-外部GND
PB1
PB3
PB5
PB7
PB-外部GND
PC1
PC3
PC5
PC7
PC-外部GND
-
-

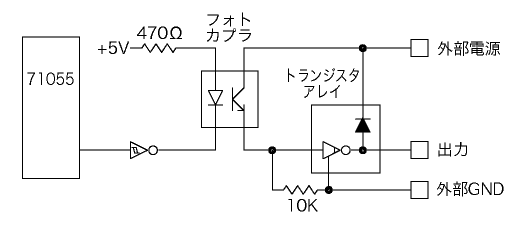

■Output Circuit
